  See other products

Product card  •  923200004  •  OlympiaElectronics

Language: DE EL EN
  Download PDF [https://etim-mapper.com/product-card/pdf/o2E0udZP7R3wHEBhLjmFOROcEgnlVest/lang/en]

GR-2000/CBS

Luminary For CBS with Leds
General information
Product ID923200004
GTIN5205327019376
Manufacturer nameOlympia Electronics
Included batteryNo
RoHS indicatorRoHS directive applies
CE markingYes
Country of originGreece (GR)
Net length0.270 m
Net width0.100 m
Net height0.025 m
Net weight0.250 kg
ETIM description
ClassEmergency luminaire (EC001957)
GroupLuminaires (EG000027)
Mounting methodSurface mounting/recessed mounting
FunctionEscape route lighting/signage
Suitable for labelling typeSticker
Type of indicatorSingle-sided
With pictogramYes
With remote switch connectionNo
With remote controlNo
Emergency function monitoring systemOther
Emergency power supply systemCentral (central battery)
Lamp typeLED not exchangeable
With light sourceYes
Housing materialPlastic
Housing colourWhite
Material coverOther
Voltage typeAC/DC
Nominal voltage35..250 [V]
Type of control gearLED operating device current-controlled
Exchangeable control gearNo
Light distributorDiffuser lens/optic/panel
Degree of protection (IP)IP40
Protection class according to IEC 61140II
Rated ambient temperature according to IEC 62722-2-1-30..50 [°C]
Rated luminous flux according to IEC 62722-2- 1125..125 [lm]
Max. system power1.55 [W]
Luminous flux in standby mode125 [lm]
Recognition distance18 [m]
Width100 [mm]
Height/depth25 [mm]
Length270 [mm]
Type of wiringEnding
Number of poles3
Conductor cross section1.5 [mm²]
Connection typeScrew connection
Packing information
Packing unit codeOne
Quantity of order units1
Length0.102 m
Width0.052 m
Height0.276 m
Weight0.350 kg
Attachments

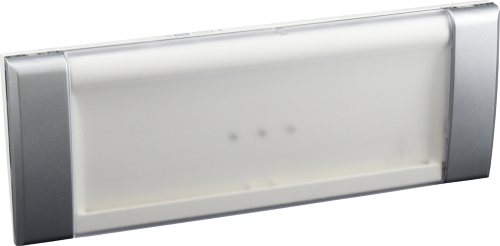

Main product picturehttps://files.etim-mapper.com/olympia/GR-2000_1.png
